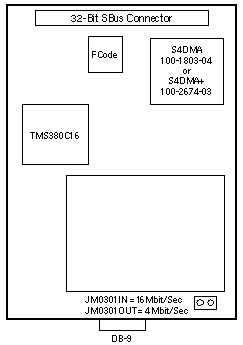

Token Ring Interface (TRI/S)

Notes

1. The minimum operating system is SunOS 4.1.
2. Option 1144 includes TRI 4.0 for Solaris 7 64-Bit operating system.
3. Option 2144 includes TRI 5.0 for Solaris 8.
4. The TRI/S is not compatible with Slot-3 of the Sun-4/60/65.
5. The SS1000 and SC2000 require TRI/S >=501-1932-03.
6. The TRI/S <501-1932-03 was not tested with Sun4u systems.
7. Install only one TRI/S per SS1000 or SC2000 System board.
8. Install only one TRI/S per SBus channel on the E3x00-E6x00 I/O board.
9. Do NOT use onboard Ethernet, SCSI, SOC, or SOC+ when TRI/S is installed in the same SBus channel on the E3x00-E6x00 I/O board.
10. Install only one TRI/S on the E10000 I/O SBus board and do NOT install any board in the second slot.

References

1. TRI/S Installation Guide, 801-3890.
2. TRI/S 4.0 Installation Guide, 805-6906.
