High Speed Serial Interface (HSI/P)

A16 / A20 / A21 / A22 / A23 / A25 / A26
A27 / A28 / A29 / A33 / A34 / A36 / A41
Netra T1 / Netra 20 / Netra t 1100/1120/1125
Sun Fire V120 / Netra 120
Netra t 1400/1405 / Netra ft 1800
E3000 / E4000 / E5000 / E6000
E3500 / E4500 / E5500 / E6500
Sun Fire 4800 / 4810 / 6800
Sun Fire V480 / Sun Fire V880

Options 1040 / 1155 / 6931

370-2728 540-3982
Performance Technologies
PT-PCI334
5V 32Bit 33MHz		 Netra ft 1800 FRU
with 370-2728

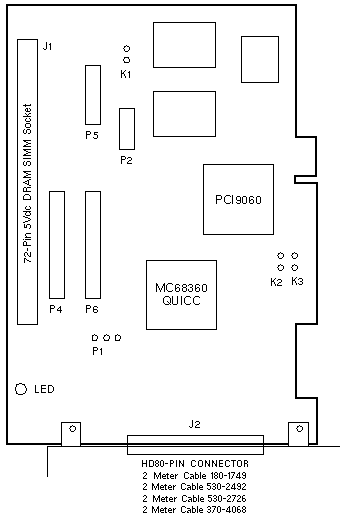

Jumper Settings

JUMPERS PINS SETTING DESCRIPTION
K1 1-2 Out Burn-In disabled
K2
K3		 1-2
1-2		 In
Out		 Max Power = 25W
Max DRAM 32MB
K2
K3		 1-2
1-2		 Out
In		 Max Power = 15W (default)
Max DRAM 8MB (default)
K2
K3		 1-2
1-2		 In
In		 Max Power = 7.5W
Max DRAM 2MB
K2
K3		 1-2
1-2		 Out
Out		 Max Power = 0W
Max DRAM 0MB

Connectors

LOCATION PINS DESCRIPTION
J1 72 SIMM socket
J2 80 RS-449 (422) port
P1 3 Debug port
P2 10 Background Debug Mode (BDM) port
P3 1 Clock test
P4 34 Data bus test (not stuffed)
P5 18 Control test (not stuffed)
P6 34 Address bus test (not stuffed)

Notes

  1. The HSI/P supports 1MB through 32MB, 72-Pin, 5 Volt SIMMs.
  2. A 4MB SIMM is installed as a standard configuration.
  3. The 4MB SIMM does not have a Sun part number.
  4. The BDM port is defined in the QUICC Users Manual, Section 9.9.
  5. The HSI/P Cable provides four DB37 connectors.

Operating System Notes

  1. The minimum operating system is Solaris 2.5.1 Hardware: 4/97.
  2. The HSI/P 1.0 software is on CD-ROM 704-5748-10.
  3. The HSI/P 2.0 software is on CD-ROM 704-6439-10.
  4. Option 1155 includes HSI/P 2.0 for Solaris 7.
  5. The Solaris 8 Supplement includes HSI 3.0 software.

Reference

HSI/P Users Guide, 805-1075.
